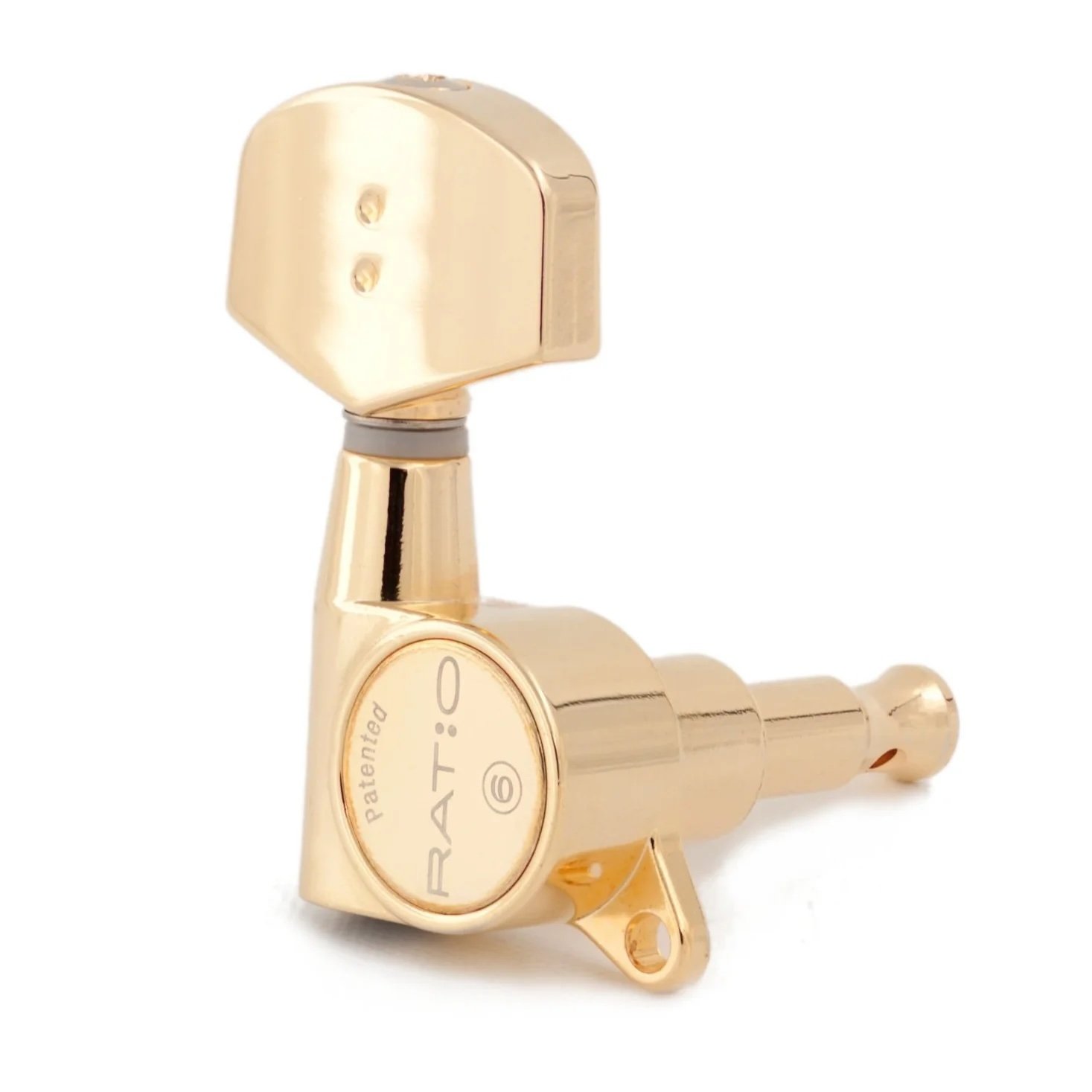

A right handed set of Ratio Tuned Machine Heads for acoustic guitar that use three per side tuners. It has a single pin casing.

Ratio by Graph Tech Acoustic 3+3 Guitar Machine Heads Gold Finish. "45 Degree mounting screw"

RATIO® patented gear technology
RATIO® - Calibrated Machine Heads incorporate different string gauges into the tuning equation.

From Low E to High E 39:1, 24:1, 20:1, 14:1, 20:1, 12:1.

We balanced the gear ratios to each string simplifying the tuning process.

With RATIO®, a half-turn is a semi-tone!

Every string reacts the same to any tuning adjustment. Predictable, precise tuning, on every string.
Gear ratio: unique for each string position - one turn-one tone
Peg holes diameter required: 13/32" (10mm)
String post diameter: 0.236" (6mm)
String post length to string hole: 0.910” (23mm)
Weight per single machine head: 0.066lbs (30g)
Weight per set of six: 0.393lbs (179g)
String diameter up to 72 gauge
Includes 6 machine heads, mounting screws and bushings
